Walkie talkie Yaesu VX-6R
RM 1,350.00
Specifications:
General | |

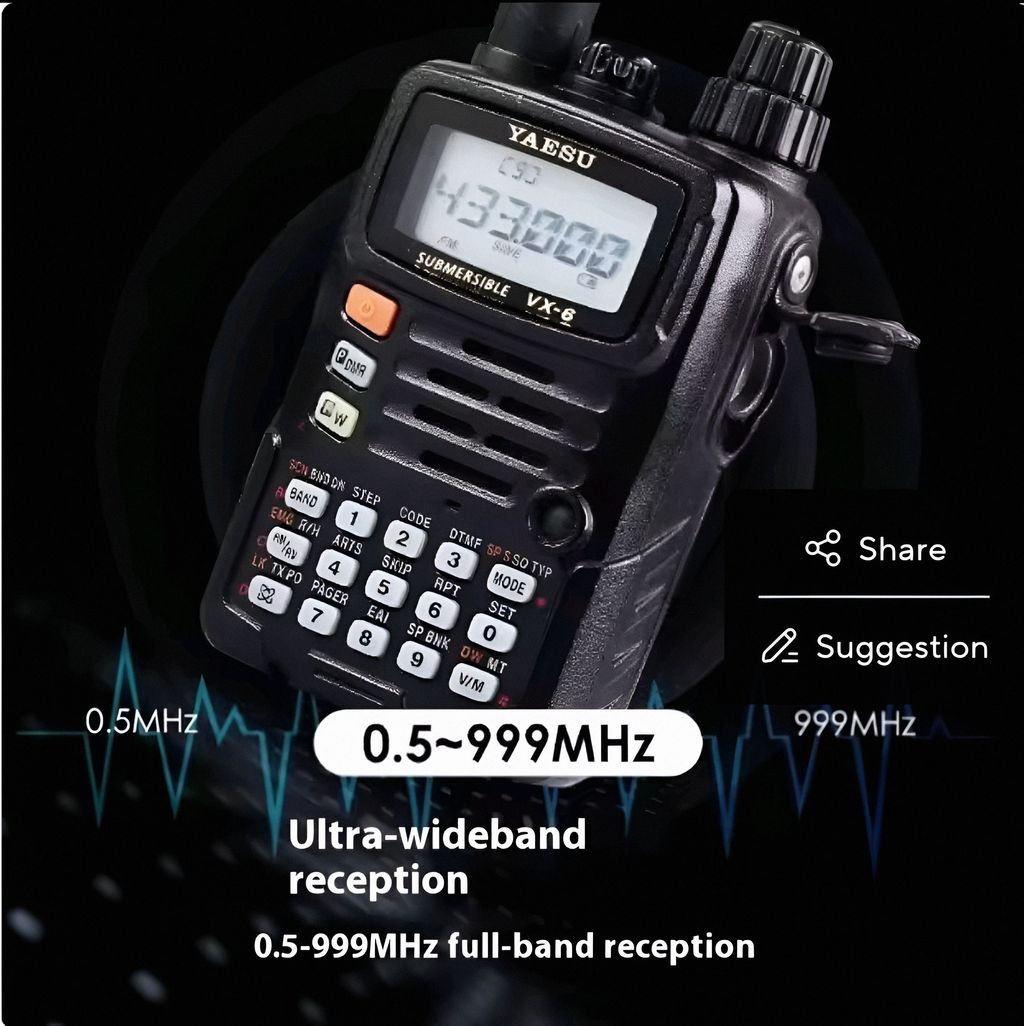

Frequency Range Receive: | 0.5 - 1.8 MHz (BC Band) 1.8 - 30 MHz (Shortwave Band) 30 - 59 MHz (6 Meter Amateur) 59 - 108 MHz (FM) 108 - 137 MHz (Air Band) 137 - 174 MHz (144 MHz HAM) 174 - 222 MHz (VHF-TV) 222 - 420 MHz (ACT1: Action Band 1) 420 - 470 MHz (430 MHz HAM) 470 - 729 MHz (UHF-TV) 803 - 998.99 MHz (ACT2: Action Band 2 Cellular Blocked) |
Frequency Range Transmit: | 136~174Mhz 222 - 225 MHz 430 - 450 MHz |
Channels Memory | Over 1000 Memories |
CTCSS CTCSS/DCS | Encode/Decode |
Channel Steps | 5/9/10/12.5/15/20/25/50/100 kHz |
Operating Voltage: | 11-16 VDC Negative Ground EXT DC Jack |
Operating Temperature | Operating Temperature: -20°C to +60°C |
Antenna connect | SMA |
Antenna Impedance | 50ohms |
Dimension (H x W x D) | Case Size: 2.3x3.5x1.1 inches (58x90x29 mm) |
Weight | (without knob and antenna) 9.5 oz (270g) |
Receiver | |
Sensitivity: | 1.5 μV for 10dB S/N (0.5-30MHz, AM) 1.0 μV for 12dB SINAD (59-108 MHz/470-540MHz, W-FM) 0.5 μV for 12dB SINAD (54-59MHz/300-420MHz, N-FM) |
Adjacent Channel Selectivity: | Better than 70 dB |
Intermodulation: | Better than 70 dB |
AF Output: | 0.7W @ 16 Ohms for 10% THD (@ 7.5 V) |
Circuit Type: | N-FM, AM Double-conversion, W-FM Triple Conversion |
Current Consumption | 125 mA (Receive) 8 mA (Auto Power Off) 1500mA (5W) |
Transmitter | |
Power Output | 144/430 MHz 5.0/2.5/1.0/0.3 watts 222 MHz 1.5/1.0/0.5/0.2 watts |
Modulation Type | Variable Reactance F2D, F3E |
Spurious Emission | At least 60 dB down |
Modulation Type: | Variable Reactance |
Transmit Current | 1500mA (5W) |
Max. Deviation | ±5 kHz |
Modulation Distortion | |
Frequency Stability | Better than ±5 ppm |
