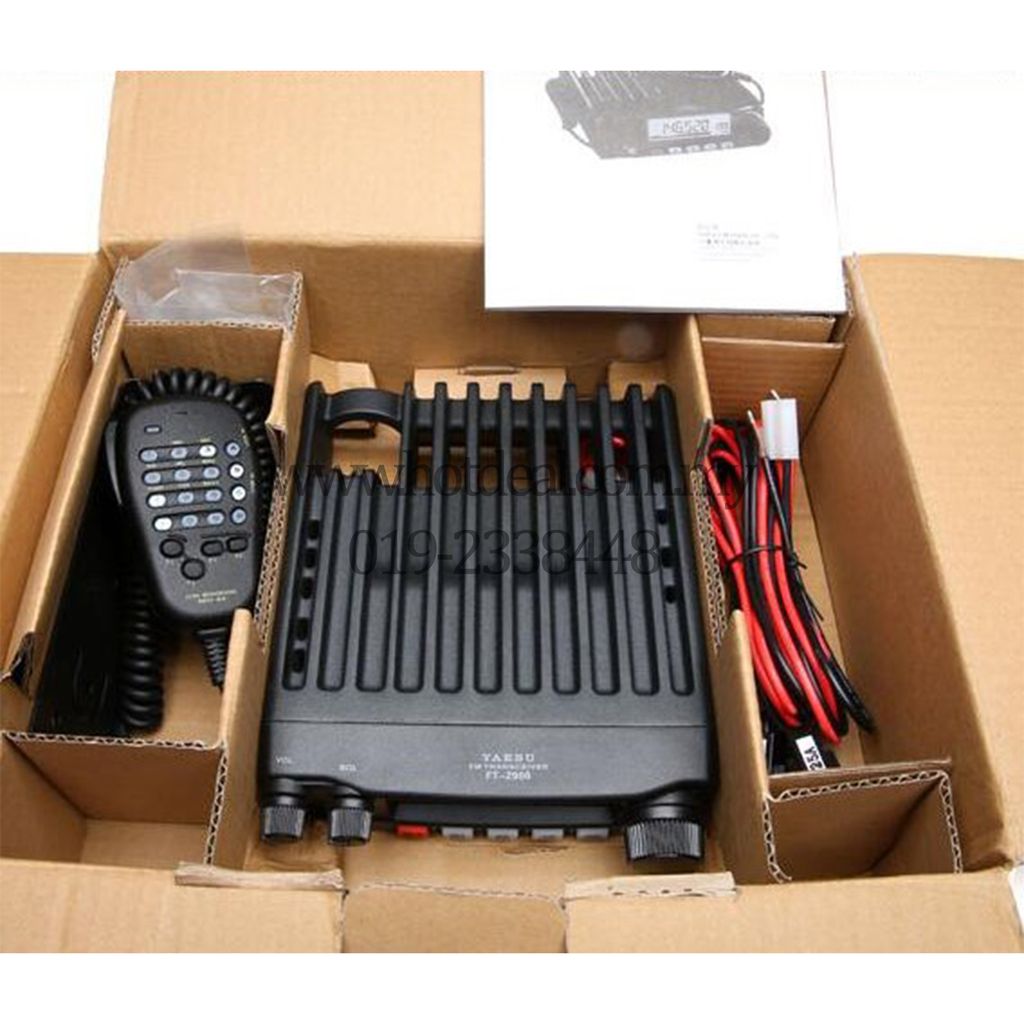

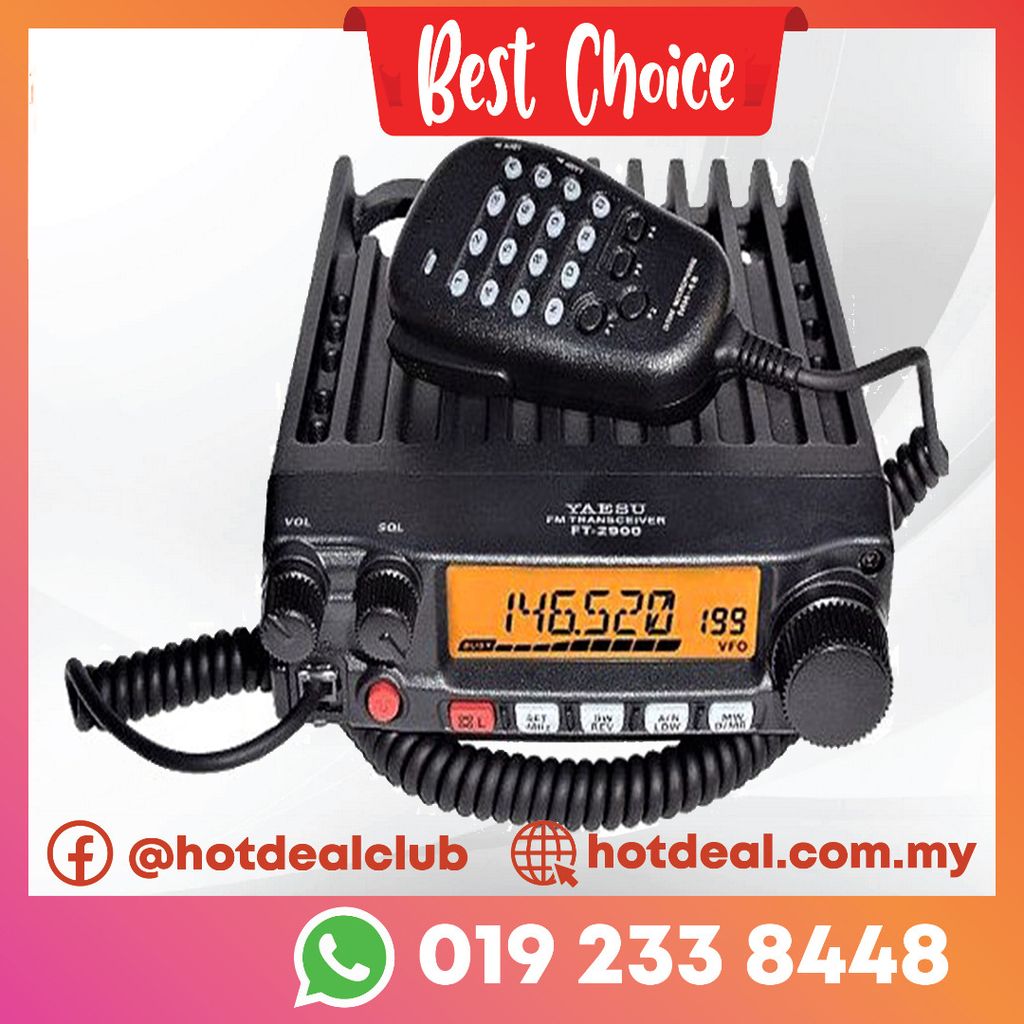

Mobile rig Yaesu ft2900r vhf (OEM)
RM 750.00
Specification of Mobile Two Way Radio
GENERAL
Frequency Range Receive: 136-174 MHz.
Frequency Range Transmit: 136-174 MHz
Channel Steps: 5/10/12.5/15/20/25/50/100 kHz
Frequency Stability: Better than +- 10 ppm (-20°C to +60°C)
Mode of Emission: F2D, F3E
Antenna Impedance: 50 Ohm, Unbalanced
Operating temp range: -4° to +140°F (-20°C to +60°C)
Supply Voltage: DC 13.8V +-10%, Negative Ground
RX:
Less than 0.7A (max. audio)
a
Less than 0.3A (Squelched)
TX: 15A (75W) / 9A (30W) / 5A (10W) / 4A (5W)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Case Size:
6.3 x 2.0 x 7.3 inches (w/o knobs)
a
160(W) x 50(H) x 185(D) mm
Weight: 4.2 lb. (1.9kg)
TRANSMITTER
RF Power Output: 75/30/10/5 Watts
Modulation Type: Variable Reactance
Maximum Deviation: +-5 kHz / + 2.5 kHz
Spurious Radiation: Better than -60dB
Microphone Impedance: 2 K Ohm
RECEIVER
Circuit Type: Double-Conversion Superheterodyne
Intermediate Frequencies: 21.7 MHz and 450 kHz
Sensitivity (12dB SINAD): Better than 0.4uV
Selectivity Wide: (-6/-60 dB): 12 kHz/28 kHz
Selectivity Narrow: (-6/-60 dB): 9 kHz/22 kHz
IF Rejection: Better than 70 dB
Image Rejection: Better than 70 dB
Maximum AF Output: 3 W into 4 Ohm @ 10% THD
