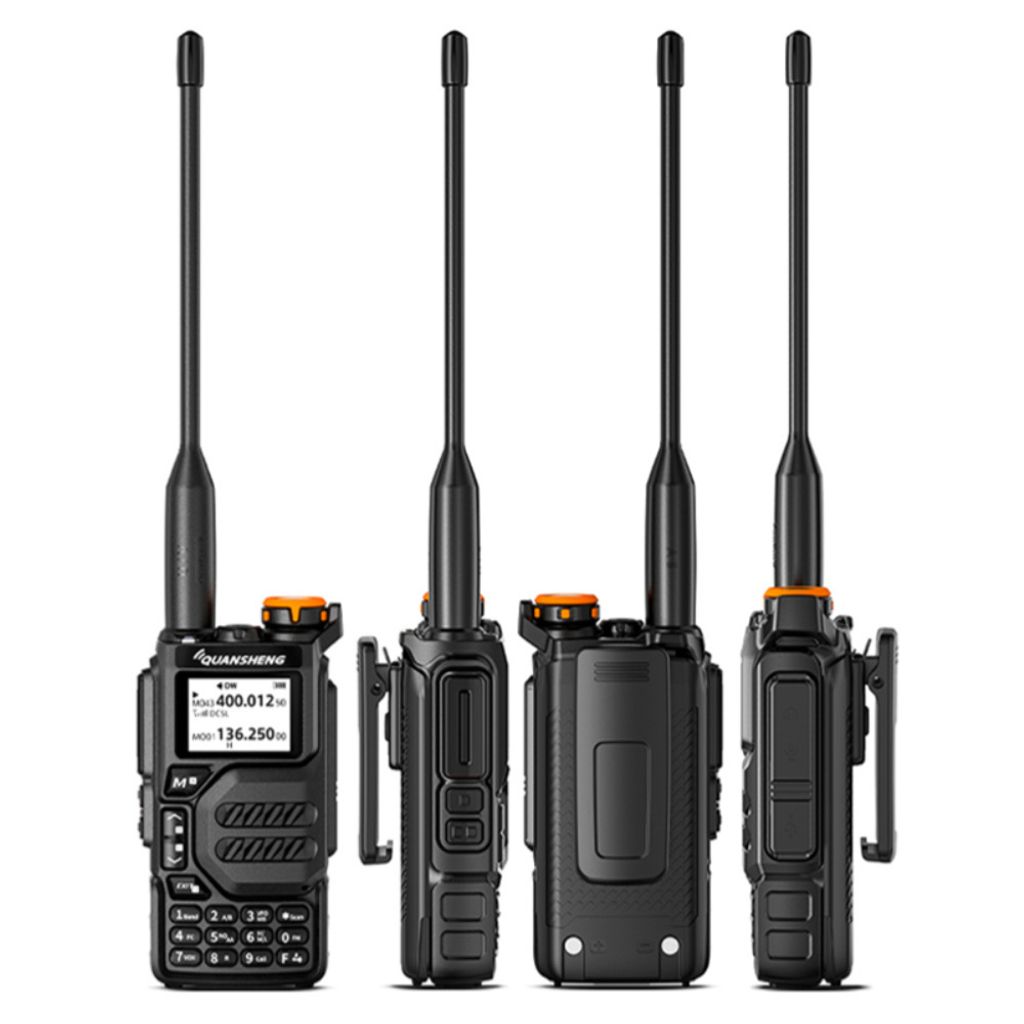

Quansheng UV-K5 quadband walkie talkie (100% genuine)

RM 100.00
  • General Specification

    ● NOAA Weather Alert VHF UHF dual band

    ● -10 Channels America NOAA weather forecast / -Built-in high light Torch / -200 Memory Channels

    ● -Wireless Frequency copy from other radios, Wireless Radio Replication from other Quansheng UV-K5 Radios

    ● The radio comes with a 1600mAh rechargeable Li-ion battery pack and can be charged via TYPE C and desktop cradle.

  • Features

    ●Signal channel:200

    ●Number of FM radios stored:20

    ●Audio power:≥0.5W

    ●Audio distortion:≤10%

    ●Frequency stability:±1ppm

    ●launch Band:144∽146MHz430∽440MHz

    ●Size:115mmX60mmX37.5mm

    ●weight:234g

    ●Operating temperature:-20℃+60℃

    ●Transmit power:4W

    ●Transmit current:≤1.5A

    ●Antenna impedance:50 euros

    ●Maximum frequency offset:≤5KHz(25KHz),≤2.5KHz(12.5KHz)

    ●Modulation mode:FM:11KOF3E(12.5KHz),16K0F3E(25KHz)

    ●Modulation distortion:≤5%

    ●NOAA channel number:10

    ●Stray components:≤7.5uW

    ●Battery capacity:1600mAh

    ●Frontage power:70dB(25KHz),60dB(12.5KHz)

    ●Reception: FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm

    ●Residual modulation:40dB

    ●Reference sensitivity:F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) - 121dBm WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm

    ● Package:

    -1× UV-K5 Radio Body

    -1× 7.2V 1600mah Li-ion Battery Pack

    -1× SMA-Female Dual Band Antenna

    -1× Belt Clip 1× ENG Manual

    -1× Desktop Charger ( 110V ~ 240V )

    -1× Handstrap

    *Note:

    1.Use original factory charger for charging, and the Type-C charging port of the body is only used for emergency charging.

    2.To protects the environment, please recycle the battery pack.

    3. Do not remove the battery when use Type-C charging.

    4. Never attempt to remove the casing from the battery pack.
