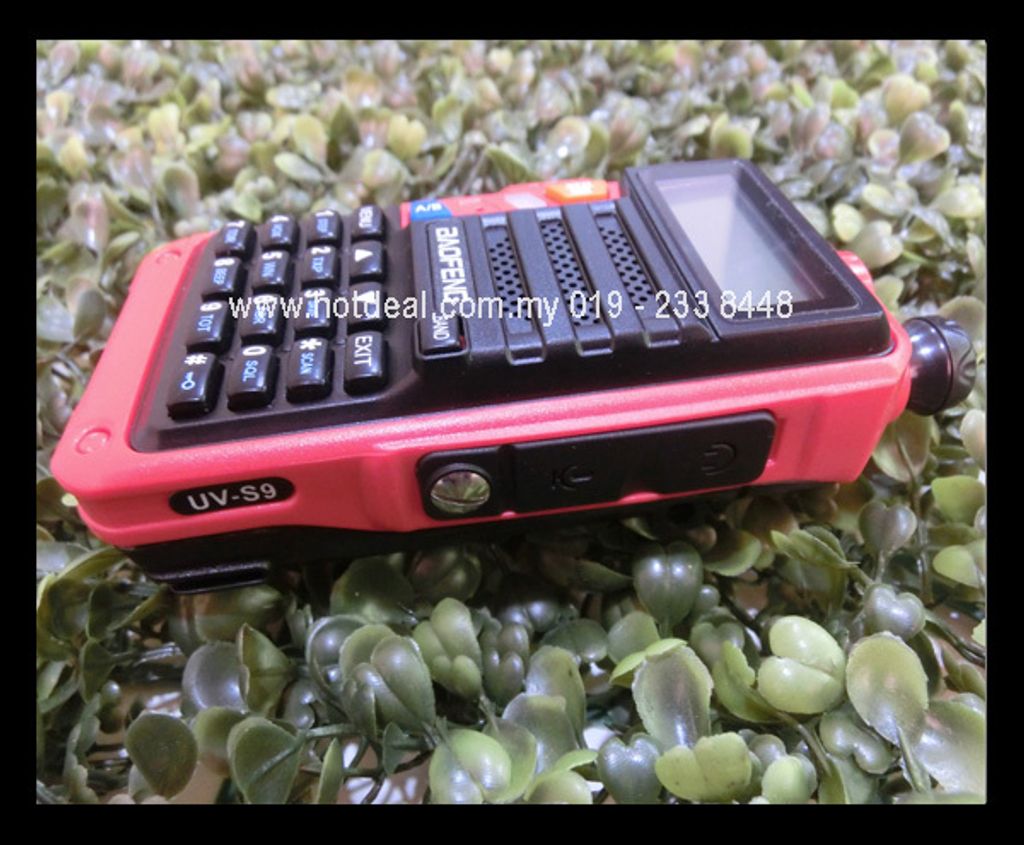

New Release: 1 Year warranty, 8 watt Power transmission ,SLIM design,Hi capacity Battery FOC direct charger cable ,FOC PTT handfree Feature: 1. 100% Brand New & Never Used 2. Dual-band handheld transceiver with display function menu on the display “LCD” 3. DTMF encoded 4. Lithium-ion battery with high capacity 5. Commercial FM radio receiver (65MHz~108MHz) 6. Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable 7. Function “VOX”(voice operated transmission) 8. Alarm function 9. Up to 128 memory channels 10. Broadband (Wide)/Narrowband (Narrow), selectable 11. High/low power selectable 12. Display illumination and programmable keyboard 13. Function “beep” on the keyboard 14. Dual Watch/dual reception 15. Selectable Frequency Step 16. Function “OFFSET” (frequency offset for repeater access) 17. Battery saving function 18. Timer transmission “TOT” programmable 19. Selecting the Scan Mode 20. Busy Channel Lock 21. Built-in RX CTCSS/DCS scan 22. Built-in LED flashlight 23. Programmable by PC 24. Level Threshold “Squelch” adjustable from 0 to 9 25. Cross band reception 26. Tone end of transmission 27. Built-in key lock Specification:
General
| Frequency range | VHF:136MHz-174MHz(Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
65MHz-108MHz(Qnly commercial FM radio reception) | Memory channels | Up to 128 channels | Frequency stability | 2.5ppm | Frequency step | 2.5/5/6.25/10/12.5/25KHz | Antenna impedance | 50 OHM | Operating temperature | -20°C-60°C | Supply voltage | Rechargeable Lithium-Ion 7.4V | Battery Capacity | 2800mAh | Consumption in standby | <=75mA | Consumption in reception | 380mA | Consumption in transmission | <=1.4A | Mode of operation | Simplex or semi-duplex | Dimensions | 110x58x32mm | Weight | 130g(approximate) | Transmitter | RF power | 8W/1W | Modulation type | FM | Emission class | 16K øF3E/11KøF3E(W/N) |
| Maximum deviation | <=±5KHz/<=±2.5KHz(W/N) |
| Spurious emission | <-60dB |
| Receiver |
| Receiver sensitivity | 0.2µV (at 12 dB SINAD) |
| Inter modulation | 60dB |
| Audio output | 1000mW |
| Adjacent channel selectivity | 65/60dB |
|
Package include: 1 X Portable radio 1 X Inductively loaded antenna 1 X 2800mAh Li-ion battery pack 1 X LI-ion charger 1 X Belt clip 1 X The Sling 1 X User's manual WhapsApp,Wechat,Viber,Line,Talkbox or call :www.wasap.my/60192338448/9W2LHZ
